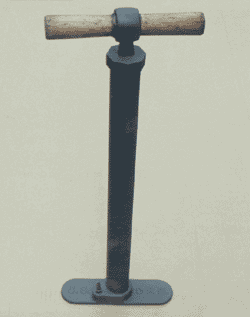

Style 1 has US- embossed on one side of the base and QMC on the other side. The only marks on the bottom of the base appear to be mold marks but are 305592 ? 44. |
 |
Style 2 has U.S. embossed on one side of the base and ORD. on the other side. On the bottom of the base is embossed THE / DALTON / FOUNDRIES / INC. on one side and WARSAW / INDIANA U S A on the other side. |
 |
The hose on the pump is approximately 46 inches long. The air chuck has been machined from a piece of round steel and is threaded to fit the tire pump. The air chuck is a handy little feature. It allowed the pump to be used to blow out fuel lines etc. |
 |

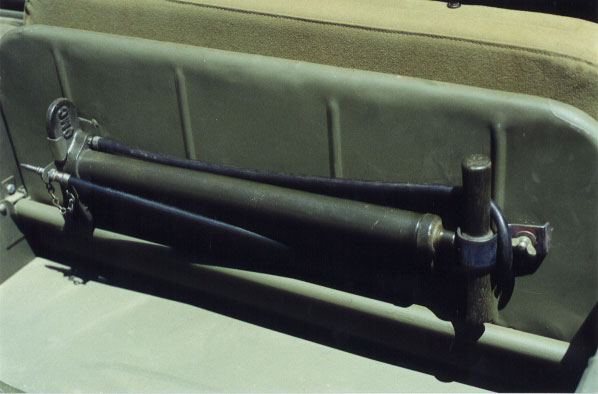

The photo shows the pump mounted in its carrier on the bottom of the rear seat. |
