by **Jamie M** » Tue May 10, 2005 3:00 pm

I am ready to drill the USMC MB bumper to accommodate the lift rings. Anyone know the dimensions? Dimension “A” is the long line and “b” is the short.

by **thovis** » Tue May 10, 2005 3:17 pm

You might want to talk to Ben he added his not to long ago.

ben1943@jarheadjeep.com

Tom

by **Mark Tombleson** » Tue May 10, 2005 9:50 pm

The rings are centered on the frame rivets... 9-1/4" center of bolt to edge of bumper on my frame.

The top bolt centerline is 7/8" from the top edge of the bumper. The ring should be flat on the top of the bumper when the ring is rotated around.

by **Guest** » Tue May 10, 2005 10:45 pm

Hi Mark,
Good morning. What is the fixing position for the USMC Ram's horn. Do you just remove the rivets and fix the horns with longer bolts through the same rivet holes ? Or do you have to make new holes.
Are there any particular measurements.
Thanks for your advise.
Horace

by **Mark Tombleson** » Tue May 10, 2005 11:38 pm

Still night here on the West Coast, Horace.

On original Navy and USMC contract jeeps the frame was punched for larger holes for the bolts to fit (for 1/2" bolt). This is the rear rivet hole location and a hole not quite 2" behind that.

by **Jamie M** » Wed May 11, 2005 7:55 pm

Thanks Mark.
You have been a great help....again.

What is with all the extra holes in the Jarhead jeep?

by **Ben Hovis** » Wed May 11, 2005 8:37 pm

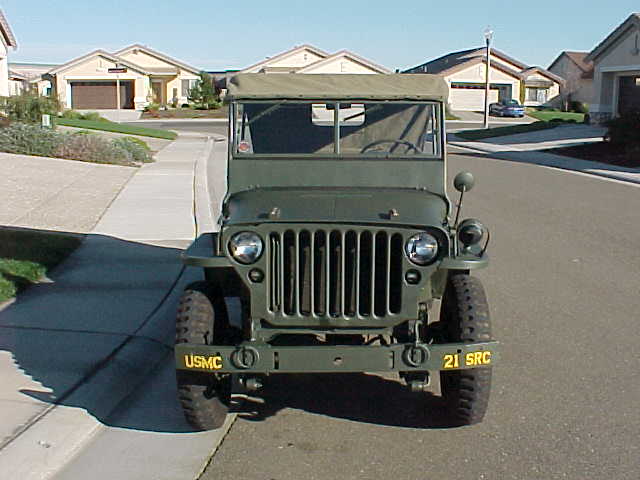

Jarhead was rigged for towing by my predecessor, works so well I stayed with it. We made him into a fine hunting jeep in the late 1970's.

Mark was helpful when I did my rings and hooks too. Matter of fact he is helpful all the time.
