Re: Attention GTB Series Owners

Postby Mitch Olson » Mon Jan 04, 2010 1:02 pm

Tom: Is this what you might be looking for regarding data/frame stamps? I have not located the frame numbers or engine or transmission numbers on this one yet. All three data plates are present. I can send better pictues via e-mail it is easier.

Ford GTB: 139637
DOD: 10 - 23 - 42
GVW: 10250
Payload: 3000
Trailer 4000


Mitch
'Jeepless' In Kalifornia

I am not a Complete Idiot, I am just like a jeep...some parts are missing!
User avatar
Mitch Olson
G-Colonel
G-Colonel

Posts: 1724
Joined: Sat Dec 21, 2002 8:38 pm
Location: California

Re: Attention GTB Series Owners

Postby Walter » Sun May 02, 2010 9:46 am

Hi Tom:

As you know I have several in my yard and the remenents of several more. You have been by to see me before. You are certainly welcome to stop by on your way through and take a look see. This is Walter in PA.
Walter
G-First Sergeant
G-First Sergeant

Posts: 137
Joined: Mon Dec 16, 2002 5:38 pm
Location: Western Pennsylvania

Re:

Postby Barf » Wed May 05, 2010 6:29 pm

Jerry Denny wrote:The GTB frame stamp is on the top of the right frame rail near the rear of the engine block. It’s also on the top flange of the transmission near the inspection plate.

I’m working on one that was built in Louisville, KY.

Jerry


Hi Jerry,
Our frame is stamped with "GTBS" as it is (aparrently) a Bomb Truck, Single axel. Are the GTB C's stamped the same way, ie:- the stamp suffix indicates what type of GTB it is/was?

barf
Barf
G-Private
G-Private

Posts: 4
Joined: Wed Mar 31, 2010 5:21 pm

Re: Attention GTB Series Owners

Postby mfggunner » Sun Jun 20, 2010 2:40 pm

I haVE A GTB IN NORTHERN IDAHO THAT I WILL NEVER GET TO RESTORE, ENGINE WAS FREE A COUPLE OF YEARS AGO. MAKE ME AN OFFER. 208 683 2592 OR EMAIL SUBGUNSTOO@ICEHOUSE.NET
smile! it could have been us! m-29s,m-4ht,m-74 mule m75 apc m116 huskies,clark airdozer,dukw,m37 s,m151,65,3 ht s
mfggunner
Sergeant Major of the Gee
Sergeant Major of the Gee

Posts: 320
Joined: Fri Apr 23, 2004 11:35 am
Location: northern idaho

Re: Attention GTB Series Owners

Postby DUNK » Sun Sep 12, 2010 10:03 am

We noticed long ago that GTB's were a great source for F bolts and other Jeep hardware. Did all of the production run use f bolts or only early production? My GPW,4-5-43 does have all the 5/16th and up f bolts but not a single 1/4" bolt with the f headstamp anywhere on it. The 1/4" bolts used are without any headstamp. Maybe they were running out. R
DUNK
G-Sergeant
G-Sergeant

Posts: 30
Joined: Fri Jul 09, 2010 2:52 pm
Location: reno,nevada

Re: Attention GTB Series Owners

Postby Blythewoodjoe » Sat Oct 02, 2010 8:24 pm

Hello guys,
I bought a GTB last week and I am trying to find out as much as possible about it. The engine cover is gone so I have no data plates but I did take a picture of the frame stamp. If any of you guys can tell me if this was a cargo or bomb truck and the year produced I would appreciate it.

Thanks, Joe.
Attachments
Sept2010.2 030.JPG
Sept2010.2 030.JPG (112.45 KiB) Viewed 1644 times
Blythewoodjoe
G-Corporal
G-Corporal

Posts: 27
Joined: Thu Oct 26, 2006 10:42 pm
Location: Blythewood, SC

Re: Attention GTB Series Owners

Postby Tom Wolboldt » Sun Oct 03, 2010 7:05 am

Hi Joe,

Thanks for posting your GTB data.

Your GTB 199029 was assembled after May 23, '44 but the original data plate would have called it a 1943. It could have been a cargo or a bomb service truck. If the passenager side running board is still intact, a running board that ends at about the rear of the cab = cargo and a running board going past the cab = bomb service.

I hope it was not the bomb service since there looked to have been two of the rear hoists at the sale where you got the truck which are most likely in very small pieces headed to China by now.

Also your GTB was assembled at the Louisville, Ky. assembly plant.

Using paint remover on the hood may bring out the original hood numbers which could help in telling what the truck original was.

I just went back and reviewed the auction photos, Your GTB 199029 was originally a Bomb Service Truck ( long passenger running board ) used by the Navy and originally painted Olive Drab Green.
Tom
"GPW Whisperer"
http://www.thegpwstory.com and other WW2 Ford vehicles ( A Troll Free Site )
Please don't feed the trolls !!!!!
Some persons are blind and stupid since they Bash others for Bashing!!!!!!!
Tom Wolboldt
G-Lieutenant General
G-Lieutenant General

Posts: 6862
Joined: Fri Jul 02, 2004 3:36 pm
Location: Ohio

Re: Attention GTB Series Owners

Postby Blythewoodjoe » Sun Oct 03, 2010 7:28 pm

Thanks for the info Tom. I did a little paint removal today and found some numbers. Blue number on OD body. There was also a "S" on the cab below the windshield. It is all visible in the photo I will post. The running board is long but I have noticed that board on cargo trucks in photo's. I bet that was a case of a cargo bed placed on a bomb truck? The hood number is 103497. I also noticed the gas tank filler is on the drivers side on my truck and appears to be original although the tank doesn't. The fill cap place just looks too nice to be added.

Thanks again.
Joe
Attachments
Sept2010.2 049.JPG
Sept2010.2 049.JPG (165.36 KiB) Viewed 1612 times
Blythewoodjoe
G-Corporal
G-Corporal

Posts: 27
Joined: Thu Oct 26, 2006 10:42 pm
Location: Blythewood, SC

Re: Attention GTB Series Owners

Postby firefighterbill58 » Fri Oct 29, 2010 3:57 pm

Tom,here is another serial number for you. US Navy Mk1 Navy Cargo Truck. Navy ser # 90187 Ford # 150063
1943 GTBC Bomb Service Truck
(2) MkII Navy Bomb Trailers
firefighterbill58
G-Private
G-Private

Posts: 5
Joined: Wed Nov 17, 2004 5:28 am
Location: Rhode Island

Re: Attention GTB Series Owners

Postby Tom Wolboldt » Mon Nov 08, 2010 12:00 am

Hi firefighterbill,

I did not find any GTB bomb handling equipment photos or equipment data at the Ford Archives. My guess is if there were bomb handling equipment used on the GTB bomb trucks it was added at a Naval vehicle depot.
Tom
"GPW Whisperer"
http://www.thegpwstory.com and other WW2 Ford vehicles ( A Troll Free Site )
Please don't feed the trolls !!!!!
Some persons are blind and stupid since they Bash others for Bashing!!!!!!!
Tom Wolboldt
G-Lieutenant General
G-Lieutenant General

Posts: 6862
Joined: Fri Jul 02, 2004 3:36 pm
Location: Ohio

Re: Attention GTB Series Owners

Postby copper » Mon Dec 27, 2010 5:52 pm

Sirs. I am looking for driver and passenger seats for a 1943 GTB bomb service truck. Anyone help?
copper
G-Civilian

Posts: 2
Joined: Mon Dec 27, 2010 3:37 pm

Re: Attention GTB Series Owners

Postby copper » Mon Dec 27, 2010 5:59 pm

Sirs. I am looking for headlights/bulbs for a 1943 GTB bomb service truck.( original 6 volt). Can anyone help steer me in the right direction?
copper
G-Civilian

Posts: 2
Joined: Mon Dec 27, 2010 3:37 pm

Re: Attention GTB Series Owners

Postby rgus » Sun Jan 23, 2011 7:39 am

Tom
Here is what I have on a GTBA cargo I just bought. The engine cover has been switched at some time as it says it is a Bomb Service Truck'
Here is the date plate but we know it isn't right
Hood Number U.S.N. 108725

Trans. number G. I B 218299


The truck is still in Arizona and the seller hasn't located the number on the frame. Where exactly is it?
43 M3A1, 42 CCKW 129,XXX, 43 GPW 146954, 43 WC54 81635383, 43 WC54 81665843, 45 WC52 818682 "MO', 43 WC63 82009972 "BIG MO", 44 GTBA NAVY CARGO 218299, 43 PE95, 44 Checker K52 Trailer,42 MBT 375, 44 Coverto Trailer 886475
rgus
G-Colonel
G-Colonel

Posts: 1902
Joined: Sun Dec 21, 2003 9:50 am
Location: East Central Indiana

Re: Attention GTB Series Owners

Postby Tom Wolboldt » Sun Jan 23, 2011 10:01 am

Hello rgus,

GTB 218299 should be the original motor serial number of GTBA 108725. This GTBA would nave been assembled at the Louisville assembly plant in very very early Oct. '44.. The frame number should near the front right motor mount. I believe it has been posted it is ahead of the motor mount. The stamped number should be the same as the motor/transmission number the former owner found.

GTBC 172952, I believe, was also a Louisville built GTB from about very very late Feb. '44.
Tom
"GPW Whisperer"
http://www.thegpwstory.com and other WW2 Ford vehicles ( A Troll Free Site )
Please don't feed the trolls !!!!!
Some persons are blind and stupid since they Bash others for Bashing!!!!!!!
Tom Wolboldt
G-Lieutenant General
G-Lieutenant General

Posts: 6862
Joined: Fri Jul 02, 2004 3:36 pm
Location: Ohio

Re: Attention GTB Series Owners

Postby 68427vette » Sat Apr 16, 2011 4:19 pm

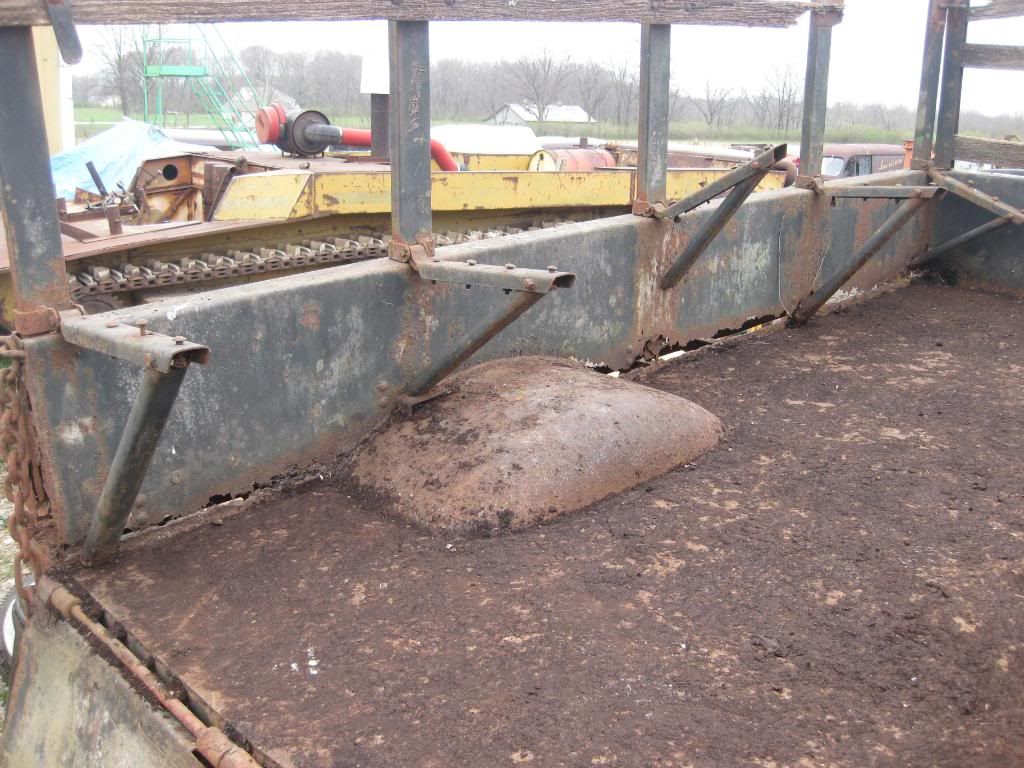

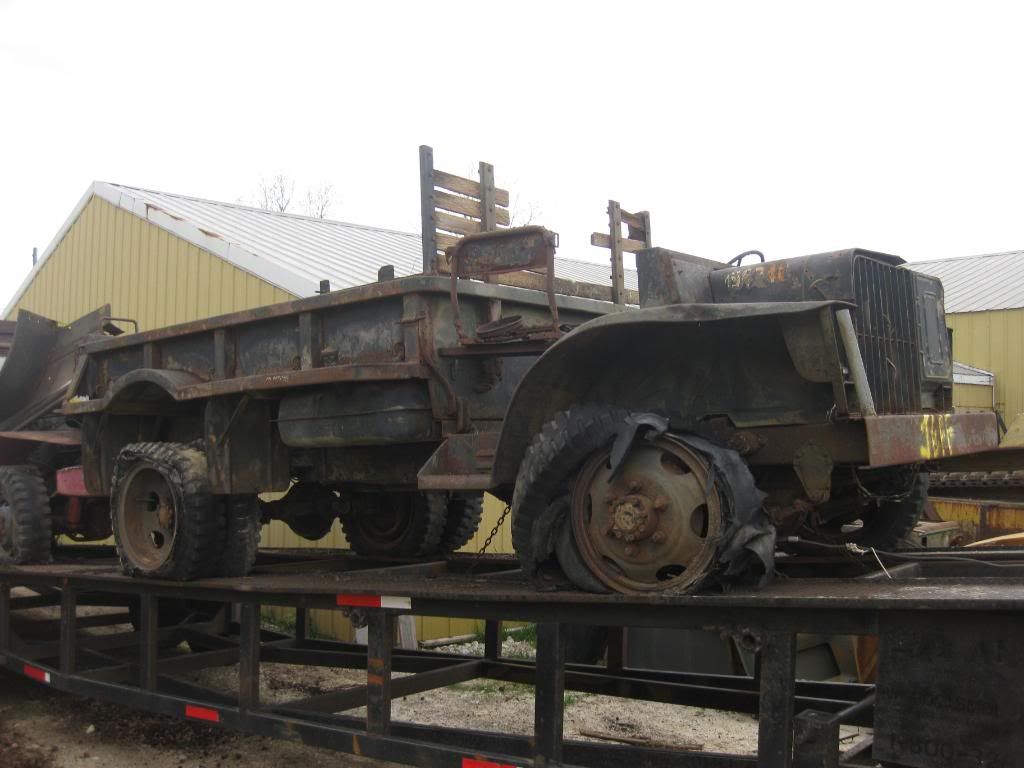

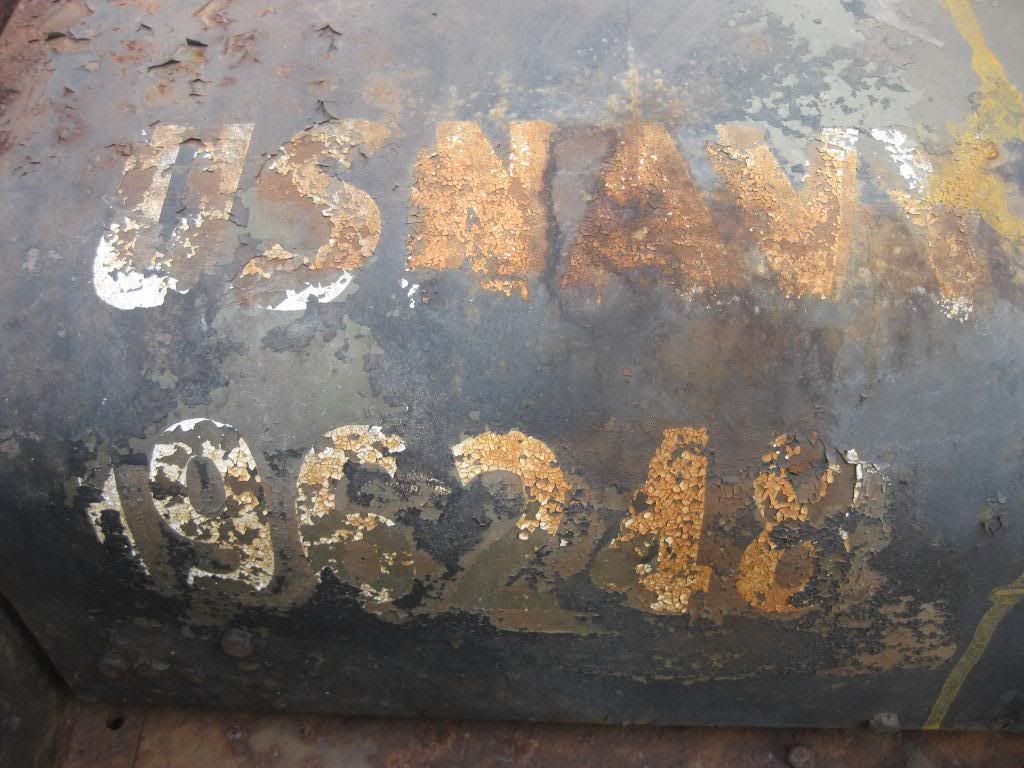

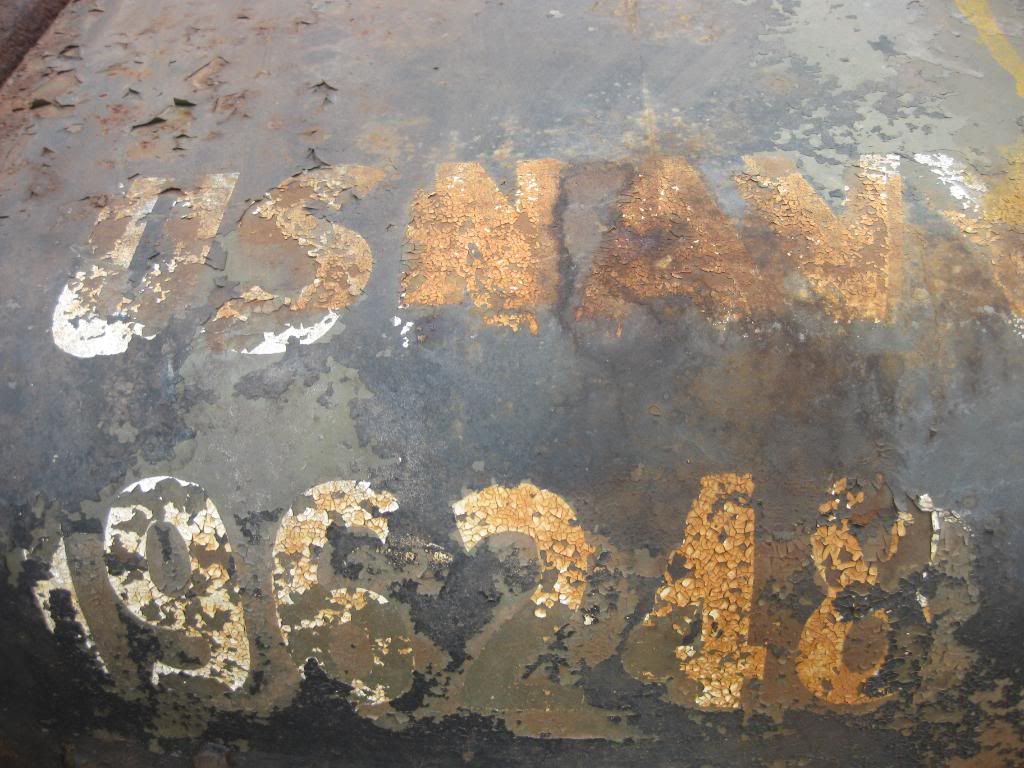

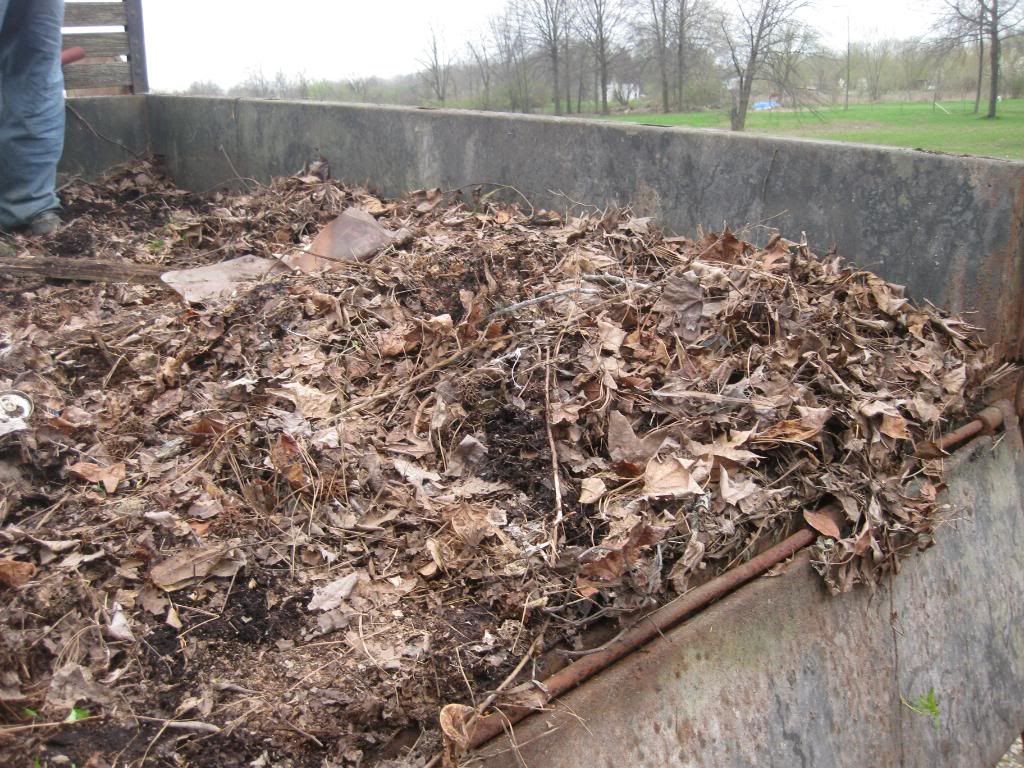

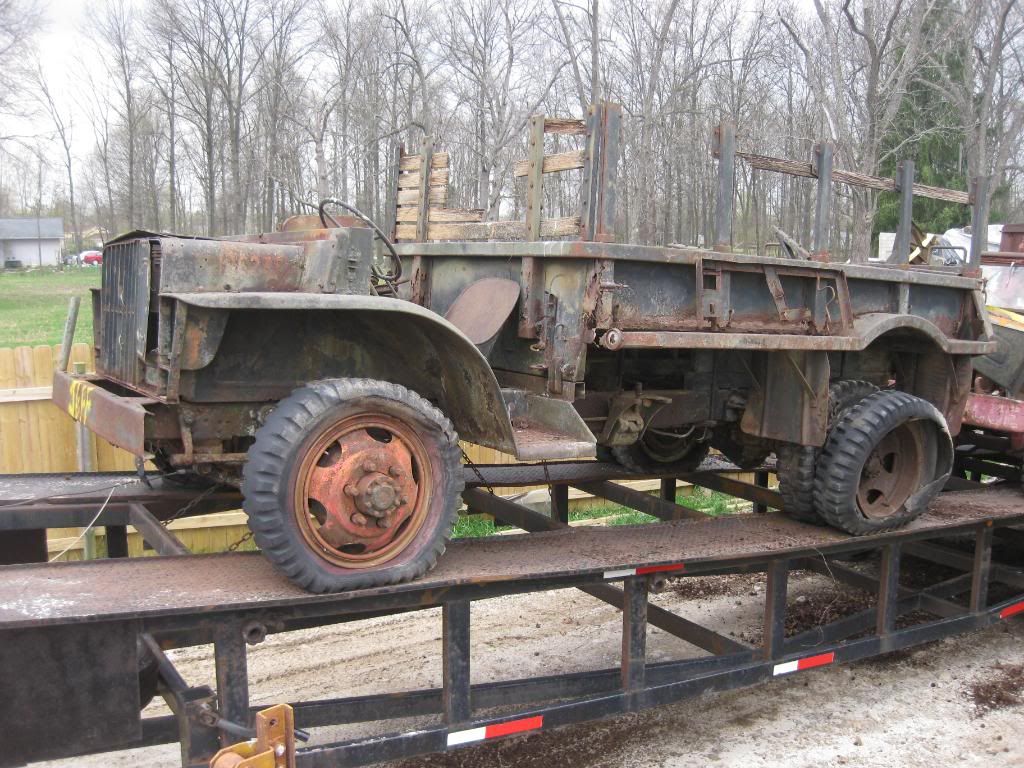

here is my save from, "china" the cover is for Joe's berma, i'm trying to find the "other cover" sold at the auction, jim henry, from NC, kept them at his place(thanks ) till i could get down there,, i think i win "the MOST AWARD", dug out dirt trash award at three FULL, heavy trash cans, just out of the back cargo area do i win, "RAN WHEN PARKED?" award? ,, i'm sure the motor is JUNK, but this berma has alot, of the TRINKETS,, and eye candy,, which i could repo,, (if i get time), i'll be looking for a donor truck, and or another berma,, here is mfgunner 's
http://www.bigshotsofidaho.com/pictures/BurmaFord.jpg
i'll be up your way to get those HT rear racks, are they on your site?

i also , found the rest of the rear racks, some top bows, and half a windshield :lol: in the leaves!!

USA 1/2 vrs CHINA 0 and the kd64, makes a solid 1 vrs china 0

here is a link to all the pics:

http://s867.photobucket.com/albums/ab23 ... MA%20Jeep/



Too much stuff... all dodges for sale.
68427vette
G-Colonel
G-Colonel

Posts: 1919
Joined: Wed Aug 11, 2004 9:34 am
Location: Ohio
